XHV2 (GV3) Molded Case Circuit Breaker

Short Description:

Application

The XHV3 circuit breaker (GV3 moulded case circuit breaker) is suitable for the alternating voltage to 690V, the electric current 1A to in the 80A electric circuit, takes three phase mouse cage asynchronous electric motor overload, breaks, short-circuits protection and not frequent starting control uses, may serve as the distribution line protection and the not frequent, load transformation, but also may do Isolates the use.

Send email to us

Product Detail

Product Tags

The GV3 motor circuit breaker uses BTR screws (hexagon socket head in shape), which need n ° 4 Allen Allen wrench to tighten firmly. This type of wiring method uses Everlink system with creep compensation. This technology ensures the accuracy and durability of tightening torque, and can prevent cable creep and effectively improve safety. In addition, GV3 Schneider motor circuit breaker can also select ring type terminal blocks for line wiring, which are usually suitable for use in places with strong vibration, such as railway transportation.

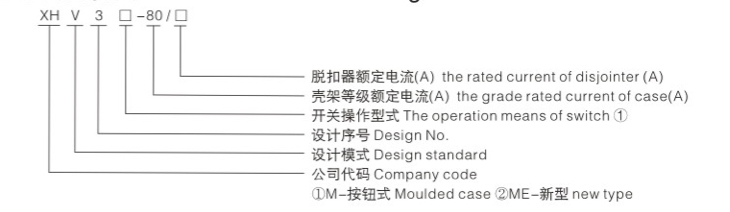

The model and meaning

product-description1

Product model	) Rated current	Motor output(kW)	Setting Range(A)		Order No.
Product model	) Rated current	Motor output(kW)	Thermal overload releases	Instantaneous overcurrent releases	Order No.
GV3-M(ME)	2.5	0.75	1.6-2.5	30	XHV3-80(GV3)-M07
	4	1.1/1.5	2.5-4	48	XHV3-80(GV3)-M08
	6	2.2	4-6	72	XHV3-80(GV3)-M10
	10	3/4	6-10	120	XHV3-80(GV3)-M14
	16	5.5/7.5	10-16	190	XHV3-80(GV3)-M20
	20	7.5/10	16-20	240	XHV3-80(GV3)-M21
	25	11	20-25	300	XHV3-80(GV3)-M25
	40	18.5	25-40	480	XHV3-80(GV3)-M40
	63	28	40-63	720	XHV3-80(GV3)-M63
	80	32	56-80	960	XHV3-80(GV3)-M80

XHV3(GV3)-M Accessories

Names of accessories	Code	the type of comtacts	installation place	Memo
Instantaneous auxiliary contacts	A01	1NO + 1NC	1 PCS) The right of breaker
Instantaneous auxiliary contacts	A02	2NO	1 PCS) The right of breaker
