SHIQ3-63G/125G Series Dual Power Automatic Transfer Switch

Short Description:

GENERAL

Control device: Built-in controller

Product structure: Small size, high current, simple structure, ATS integration Features: fast switching speed, low failure rate, convenient maintenance, reliable performance

Connection: Front connection

Conversion mode: Power on the grid, grid generator, auto-charge & auto-recovery

Frame current: 63, 125

Product current: 10, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125A

Product classification: DZ47 type, C65 type, isolation type

Pole No.: 2, 3, 4

Standard: GB/T14048.11

ATSE: CB class, with overload and short-circuit protection

PC class, without overload and short-circuit protection

Send email to us

Product Detail

Product Tags

Scope of use

This switch is applicable to dual power supply switch with 50/60HZ, rated voltage below 1000V and rated current below 63A, and can realize automatic or manual switching between common power supply (N) and standby power supply (R). (The main power supply can be the power grid, starting generator set, storage battery, etc., and the main and standby power supply are determined by the user.) Make the dual-power customers unattended. This switch is applicable to the special or first-class load users specified by the state, such as high-rise buildings, posts and telecommunications, coal mining ships, industrial assembly lines, medical and health care, military facilities, airports, fire control, gold treatment, chemical, textile, oil and other important places where power cannot be cut off.

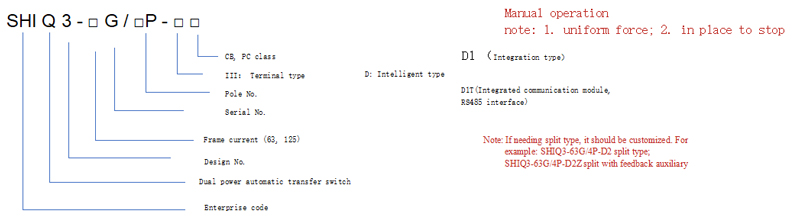

Model and meaning

product-description1

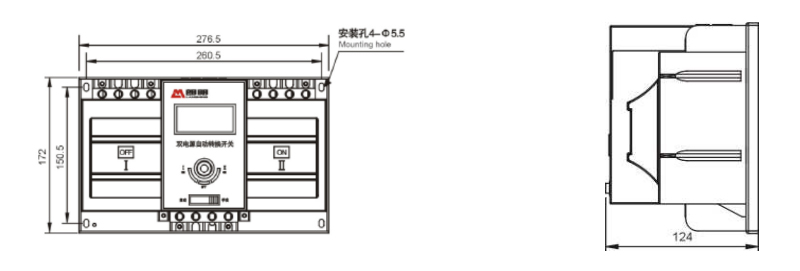

Overall and installation dimension

product-description2

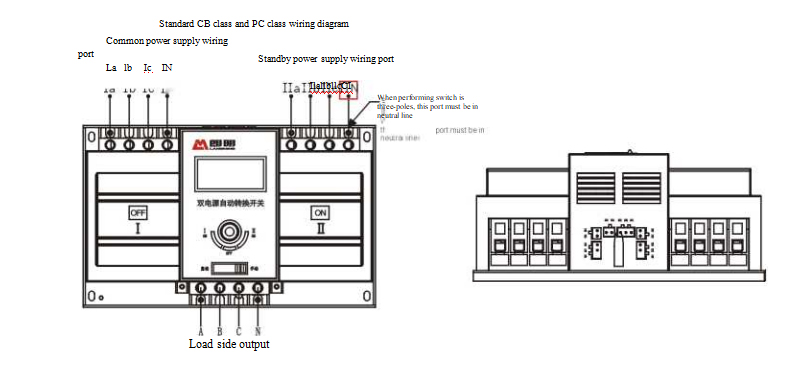

Wiring principle drawing

product-description3

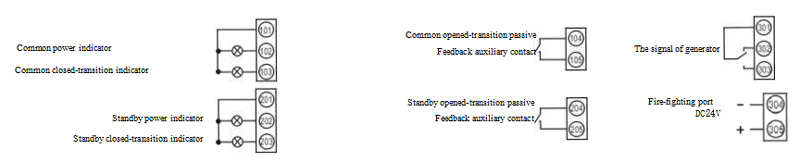

Note: the external signal port of the users:
•Terminal type (III type):
1. Product standard port 101-103, 201-203;
2.If the user needs other ports, to specify when ordering; 3.1erminal type is not with fire-fighting function;
4.The signal lamp AC220V, users according to the requirements to connect by themselves.
•Intelligent type (D type):
1. Product standard port 101-103, 201-203, 301-305；
2.If the user needs feedback signal port (104-105, 204-205), to specify when ordering.

product-description4
